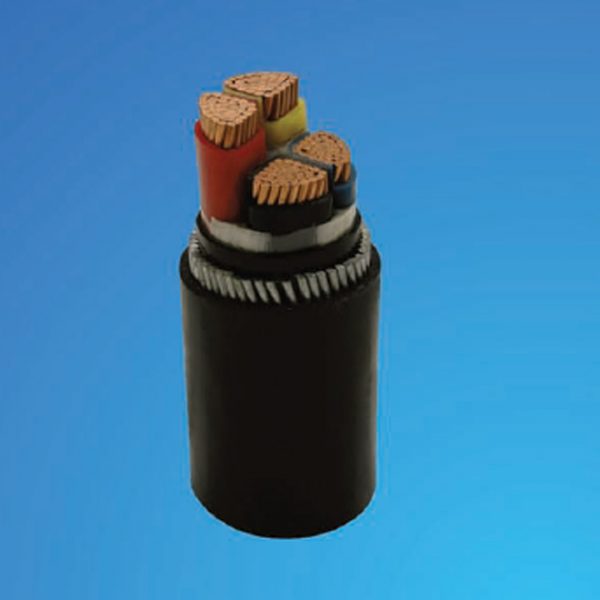

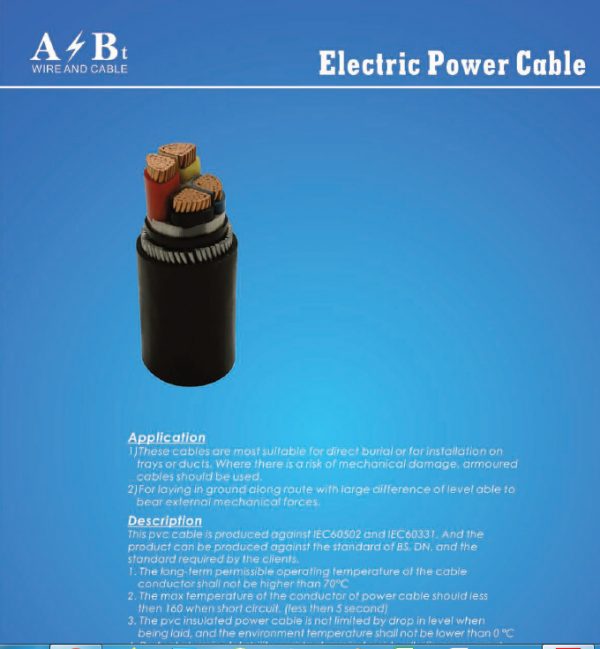

Electrical Power Cable

Product Description

Application

1. These cables are most suitable for direct burial or
   for installation on trays or ducts, where there is a
   risk of mechanical damage, armoured cables should be
   used.
2. For laying in ground along route with large
   difference of level able to bear external mechanical
   forces.

Description:
this PVC cable is produced against IEC60502 and
IEC60331, And the products can be produced against the
standard of BS, DN, and the standard required by the
clients.
1.The long-term permissible operating temperature of the cable conductor shall not be higher than 70degree
2. The max temperature of the conductor of power cable should less than 160 when short circuit.(less than 5 second)
3. the PVC insulated power cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0 degree
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance
5. Light weight, perfect bending properties, installed and maintained easily and conveniently
6. Rated Voltage: 0.6/1KV, 3.6/6KV
7.Rated voltage/Sheath :PVC
8. Number of cores: One, Two, Three, Four, Five
